11 precision-engineered bearing housing series — from 20mm to 320mm shaft diameter, built for India's most demanding industrial applications.
This product brief provides only a general view of the SMR range for standard housings and will facilitate the task of the designer in selecting the right housings for most common applications.
Many other types of bearing housings not listed here and variants of the listed housings adapted to customer demands can also be supplied.
For applications where standard housings are not suitable, SMR can supply special housings of grey cast iron, spheroidal graphite cast iron and cast steel — e.g. for conveyor equipment, rotary kilns, drums, tube mills, convertors, large electrical machines, paper making machines and rail vehicles. Further details will be supplied on request.
Standard SMR bearing housings incorporating the appropriate rolling bearings are economic replaceable bearing units and normally require little maintenance.
The bearing seating in the housings is machined to specific industrial tolerances so as to provide a perfect fit of the bearing outer ring. Generally the seating width is such that the bearing has axial freedom — slight axial positioning errors in mounting and thermal elongation of the shaft can therefore be accommodated within the housing.
To ensure reliable function and long operational life, the surface of supporting components should be machined to a surface roughness of Ra = 12.5 μm. For flatness, IT7 is recommended.
In most cases, axial location of bearings in the housings is achieved by inserting the locating rings as specified in the housing catalogs. Housings where locating rings are not used have the bearing seating machined to the appropriate width.
The suffix F indicates a locating bearing housing and suffix L a non-locating bearing housing.
It is necessary to lubricate rolling bearings to prevent metallic contact between rolling elements, raceways and cage. The choice of lubricant depends primarily on the temperature range and operating speeds.

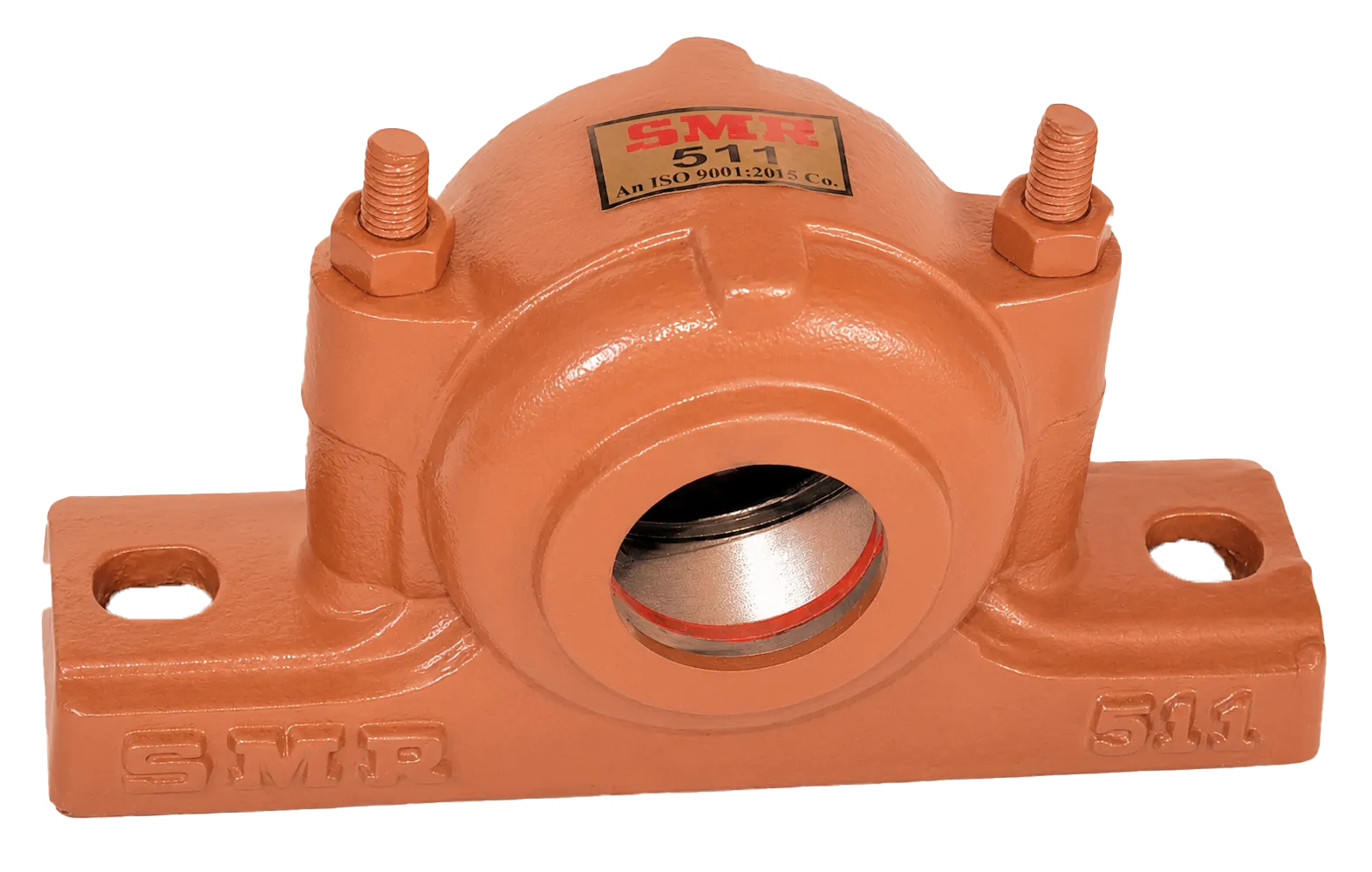

Split Plummer Block
Split plummer block housings designed for bearings on tapered adapter sleeves. Built-in grease escape ducts improve lubricant heat dissipation under continuous load cycles.

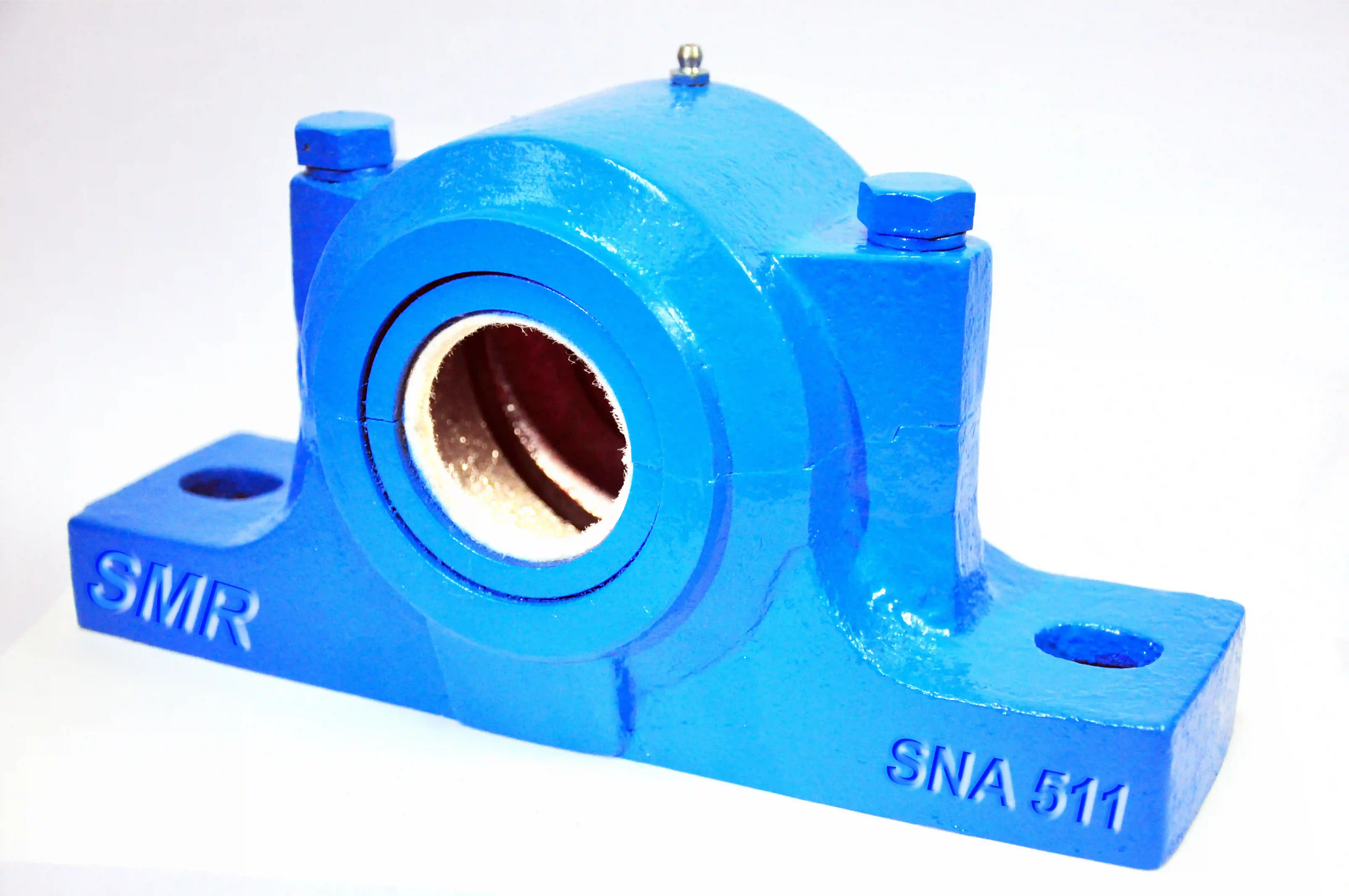

Split Plummer Block
Highly popular split plummer block style. Features reinforced housing feet and structural cross-ribs for enhanced load distribution in heavy-duty applications.
Split Plummer Block
Compact split plummer block housings with narrow base design. Ideal for space-constrained installations in textile machinery and light conveyor systems.
Split Plummer Block
The industry standard split plummer block. Highly versatile housing accommodating spherical roller and self-aligning ball bearings across all major industries.
Split Plummer Block
Heavy-duty split plummer blocks with simple, basic design for easy installation and low maintenance. A highly cost-effective solution equipped with T-bolts for secure cap-to-base tightening.
Heavy-Duty Split Plummer Block
Heavy-duty large split plummer blocks. Built to withstand structural stresses in conveyor pulley systems, steel rolling mills and mining equipment.
Medium-Heavy Split Plummer Block
Medium-heavy duty split plummer block housings. Specifically dimensioned to house wider spherical roller bearings under large radial thrusts.
Non-Split Oil Lubricated
Non-split oil-lubricated bearing housings. Designed specifically for high-speed industrial fans, exhaust blowers, and flywheels requiring continuous oil bath.
Non-Split Grease Lubricated
Non-split grease-lubricated housings. Ideal for harsh railway car suspensions and mining conveyor tunnels where dust ingress is severe.
Bespoke Custom Casting
Bespoke heavy industrial housings cast and machined strictly to client blueprint tolerances. Ideal for non-standard rotary machinery and OEM requirements.
Flanged Mount Housing
Triangle and square flanged housings. Simplifies mechanical mounting in machinery frames where perpendicular shafts are utilized.
Share your shaft diameter, load specs, or blueprint — our technical team will respond within 24 hours.
